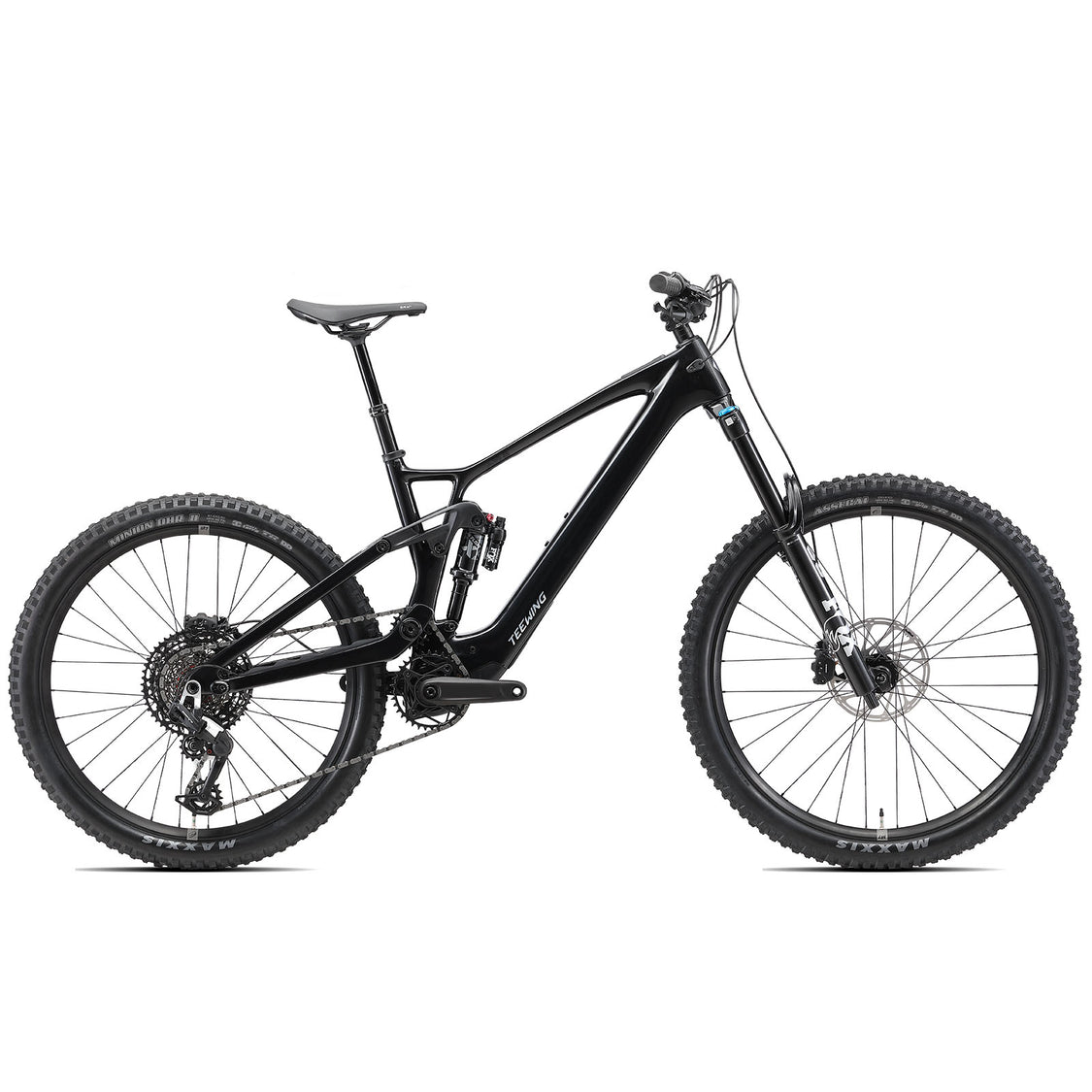

Teewing Flux One A

Full-Power Enduro Performance Without the Full-Power Weight

The Teewing Flux One A is a long-travel electric mountain bike designed for riders who want to climb faster, descend harder and fit more riding into every session.

Built around a lightweight carbon high-pivot frame, the Flux One A combines the powerful Avinox M2S drive system, an integrated 800Wh battery and 180mm FOX suspension.

Mixed-size wheels, SRAM Eagle 90 Transmission, SRAM Maven brakes and aggressive Maxxis tyres complete a serious enduro e-bike built for steep climbs, technical descents and demanding Australian trails.

Why You’ll Love It

• Powerful Avinox M2S drive system
• Up to 130Nm of torque
• Up to 150Nm of torque in Boost mode
• Integrated 800Wh battery
• Lightweight carbon high-pivot frame
• 180mm FOX 38 Performance suspension fork
• FOX Float X Performance rear shock
• 29-inch front and 27.5-inch rear mixed-wheel setup
• SRAM Eagle 90 T-Type 12-speed drivetrain
• SRAM Maven four-piston brakes
• Maxxis DoubleDown enduro tyres
• Approximate weight of 22.9kg

Avinox M2S Power

At the centre of the Flux One A is the compact and powerful Avinox M2S motor.

Weighing approximately 2.6kg, the drive unit produces up to 130Nm of torque, with as much as 150Nm available in Boost mode and peak power of up to 1300 watts.

The system provides strong assistance for steep and technical climbing while maintaining a responsive and natural feel across changing terrain.

Integrated 800Wh Battery

The fully integrated 800Wh Avinox battery gives the Flux One A the capacity for longer climbs, bigger trail loops and more descending laps.

A powerful 12A fast charger, magnetic charging connection and integrated two-inch OLED touchscreen make charging and managing the system straightforward.

Carbon High-Pivot Frame

The Flux One A uses a lightweight carbon frame with a high-pivot suspension platform, idler pulley and rearward axle path.

This design allows the rear wheel to move more effectively through square-edge impacts, helping the bike maintain speed and stability through rough terrain.

The idler system also helps reduce pedal kickback, allowing the suspension to remain active when the trail becomes steep, fast and technical.

180mm FOX Suspension

A 180mm FOX 38 Float Performance fork gives the Flux One A the stiffness, support and control required for demanding enduro riding.

At the rear, a FOX Float X Performance shock manages up to 178mm of travel in the standard mixed-wheel configuration.

This is a suspension package designed for repeated hard hits, rough natural terrain, bike-park riding and confident descending.

Mixed-Wheel Agility

The standard 29-inch front and 27.5-inch rear wheel configuration combines the rollover and stability of a large front wheel with the agility and clearance of a smaller rear wheel.

The result is a bike that feels composed at speed while remaining responsive through tight corners and technical sections.

A flip-chip system allows the frame geometry to be adjusted for greater clearance or increased descending stability. The frame can also accommodate a full 29-inch wheel setup.

SRAM Eagle 90 Transmission

The SRAM Eagle 90 T-Type drivetrain provides a durable direct-mount shifting system designed to handle the increased loads produced by powerful electric mountain bikes.

Its wide-range 10–52-tooth cassette provides the low gearing needed for steep technical climbs while retaining useful ratios for faster trail sections.

SRAM Maven Braking Power

Powerful SRAM Maven four-piston hydraulic disc brakes provide the control required for steep terrain and high-speed descending.

A large 220mm front rotor and 200mm rear rotor deliver strong and consistent braking performance when controlling the additional speed and weight of a full-power enduro e-bike.

Enduro-Ready Wheels and Tyres

The Flux One A rolls on tubeless-ready alloy rims with a wide 30mm internal profile.

A Maxxis Assegai 29 x 2.5-inch MaxxGrip tyre provides aggressive front-wheel grip, while a Maxxis Minion DHR II 27.5 x 2.5-inch MaxxTerra tyre delivers braking traction and control at the rear.

Both tyres use reinforced DoubleDown casings suited to demanding trail, enduro and bike-park riding.

Key Specifications

Frame: Teewing Flux One carbon high-pivot frame

Motor: Avinox M2S

Maximum torque: 130Nm

Boost mode torque: Up to 150Nm

Peak motor power: Up to 1300W

Battery: Integrated Avinox 800Wh

Charger: Avinox 12A fast charger

Display: Integrated two-inch OLED touchscreen

Fork: FOX 38 Float Performance GRIP, 180mm travel

Rear shock: FOX Float X Performance

Rear travel: Up to 178mm with 27.5-inch rear wheel

Drivetrain: SRAM Eagle 90 T-Type, 12-speed

Cassette: SRAM XS-1270 T-Type, 10–52T

Cranks: Teewing SL, 155mm

Brakes: SRAM Maven four-piston hydraulic disc

Brake rotors: 220mm front and 200mm rear

Wheel configuration: 29-inch front and 27.5-inch rear

Rims: Tubeless-ready alloy, 30mm internal width

Front tyre: Maxxis Assegai 29 x 2.5, 3C MaxxGrip, DoubleDown

Rear tyre: Maxxis Minion DHR II 27.5 x 2.5, 3C MaxxTerra, DoubleDown

Dropper post: EXA, size-specific travel

Approximate weight: 22.9kg

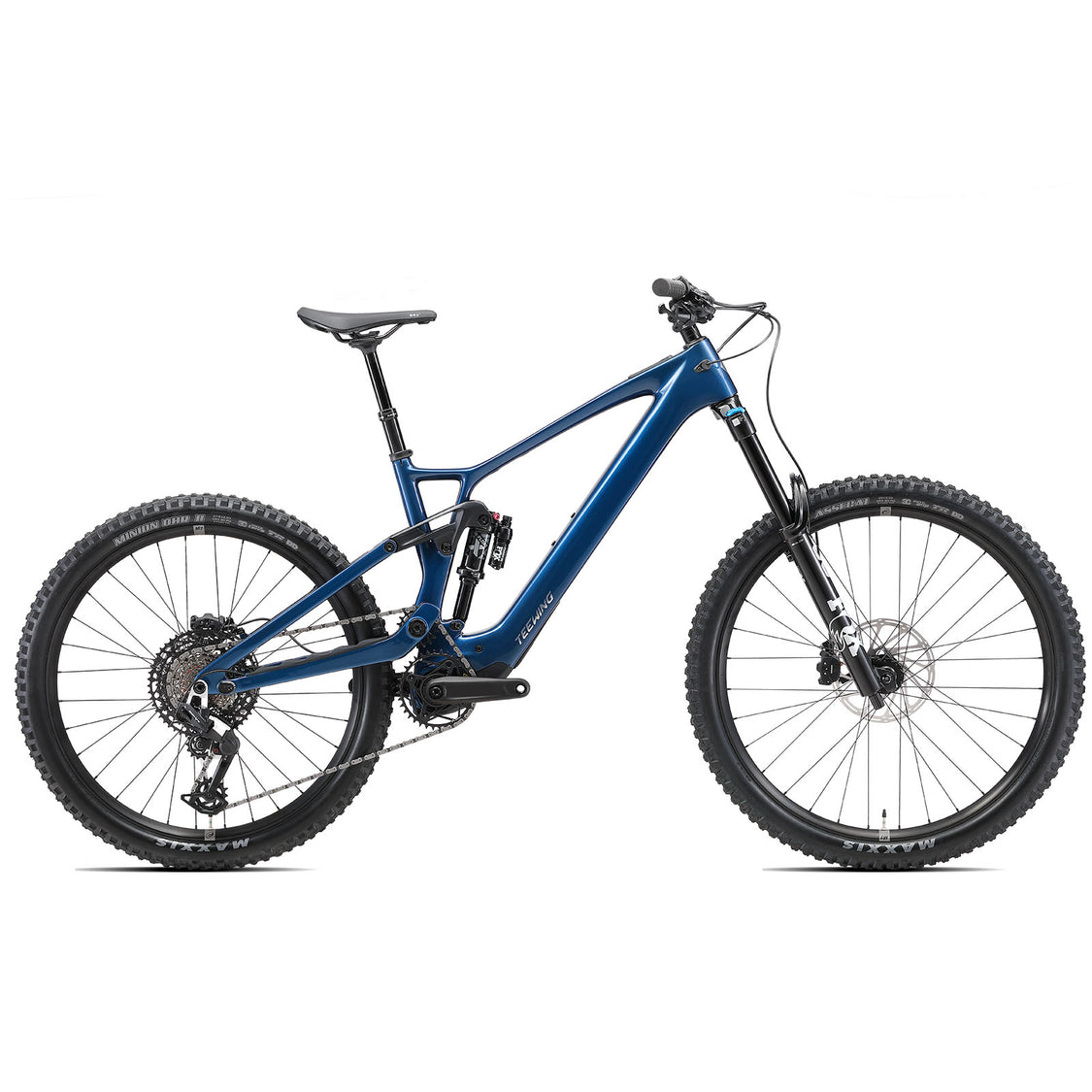

Available colours: Cosmic Black and Cosmic Blue

Available sizes: Medium, Large and Extra Large

Who Is the Teewing Flux One A For?

The Teewing Flux One A is designed for experienced trail and enduro riders looking for a powerful, long-travel electric mountain bike.

It is particularly well suited to riders tackling:

• Steep and technical climbs
• Fast enduro descents
• Rough natural trails
• Bike-park laps
• Long trail rides
• Demanding Tasmanian terrain

Available From Ride Bellerive

Contact Ride Bellerive for current availability, sizing advice and further information about the Teewing Flux One A.
